Face to face F4 resilient seal gate valve made in China

Specifications

DIN standard resilient seal Gate Valve range:

1.Size:DN50-DN1600mm

2.Pressure range:PN10,PN16,PN25

DIN standard resilient seal Gate Valve Standard:

1.Design Standard:DIN3352

2.Face to Face:DIN3202 F4

3.Flange Standard:EN 1092

4.Testing Standard:EN12226

DIN standard resilient seal Gate Valve Main Material of parts:

1.Body:GGG45/GGG50

2.Bonnet:GGG45/GGG50

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass

5.Disc:GGG45/GGG50

6.Seat:EPDM/NBR/PTFE

7.Handwheel:GGG45/GGG50

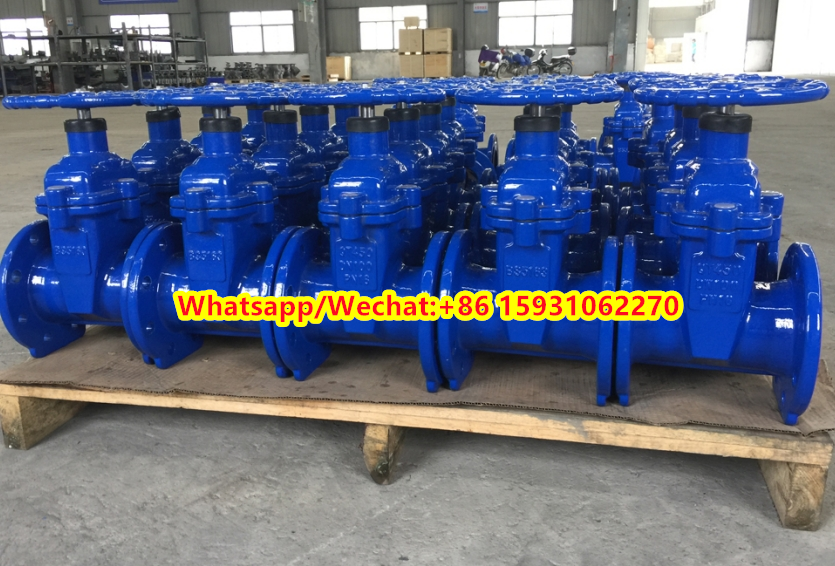

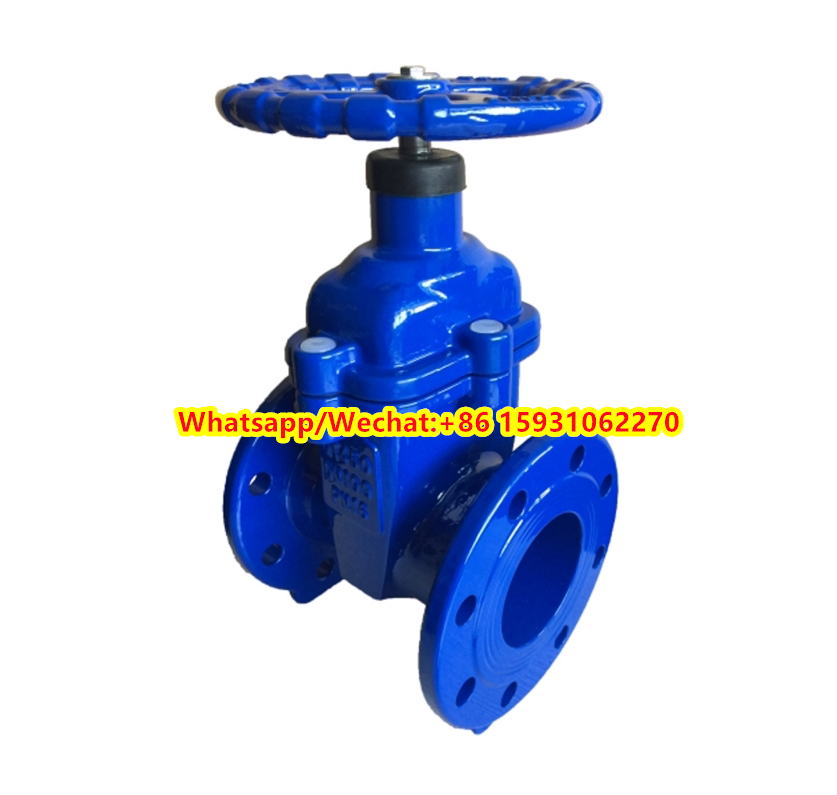

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
