BS5163 PN16 GGG50 cast iron gate valves for waterworks purposes

Specifications

1.Production Size:2”-40” DN50-DN1000mm

2.Pressure range:PN10,PN16

3.Design Standard:BS5163,BS5150

4.Face to Face:BS5150

5.Flange Standard:EN 1092-2

6.Testing Standard:ISO 5208

Main material of parts:

1.Body:EN-GJS-500-7

2.Bonnet:EN-GJS-500-7

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass

5.Disc:EN-GJS-500-7

6.Seat:NBR,EPDM,PTFE

7.Bonnet Gasket:Graphite

8.Packing:NBR,EPDM

9.Hand wheel:EN-GJS-500-7

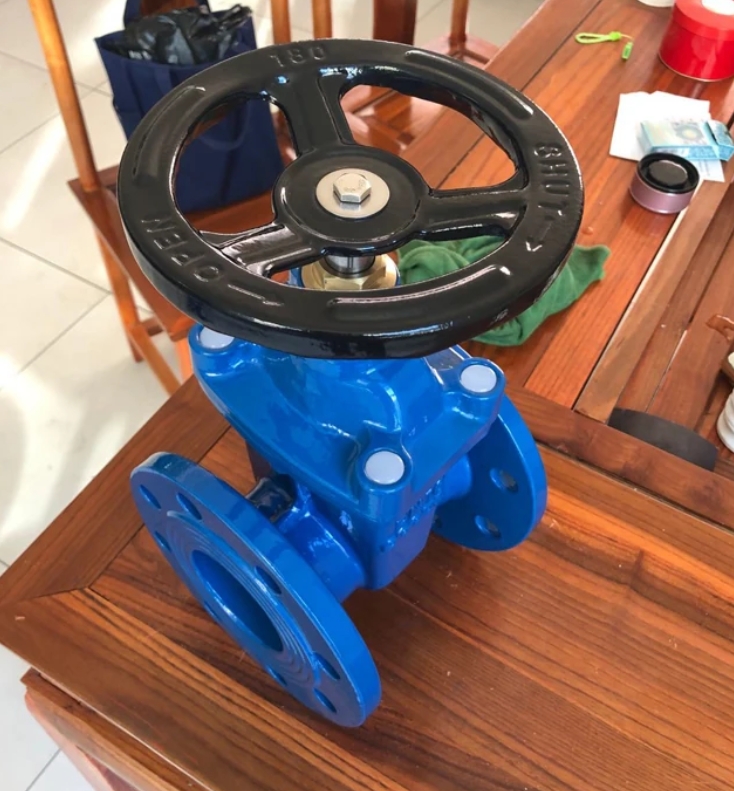

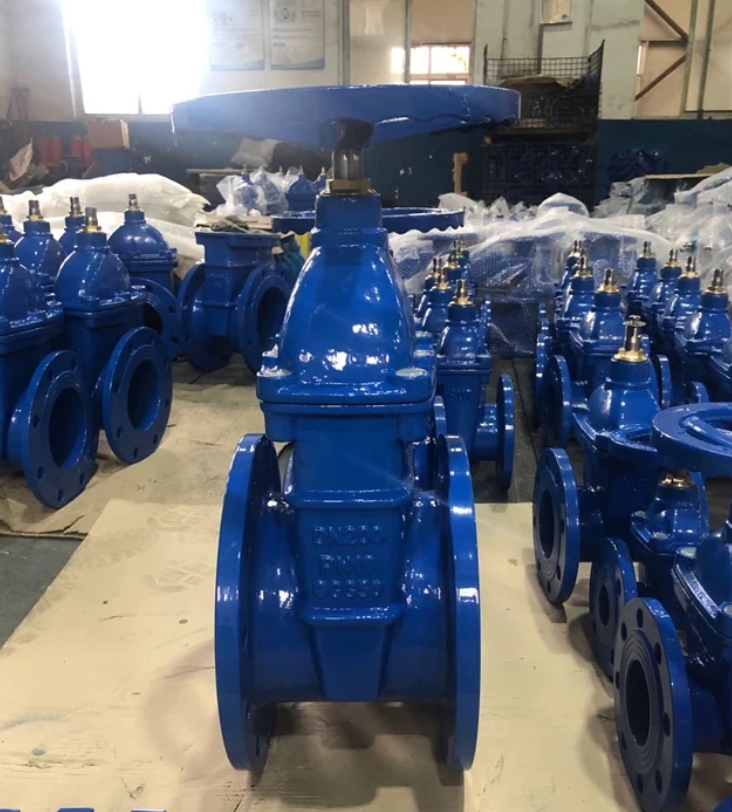

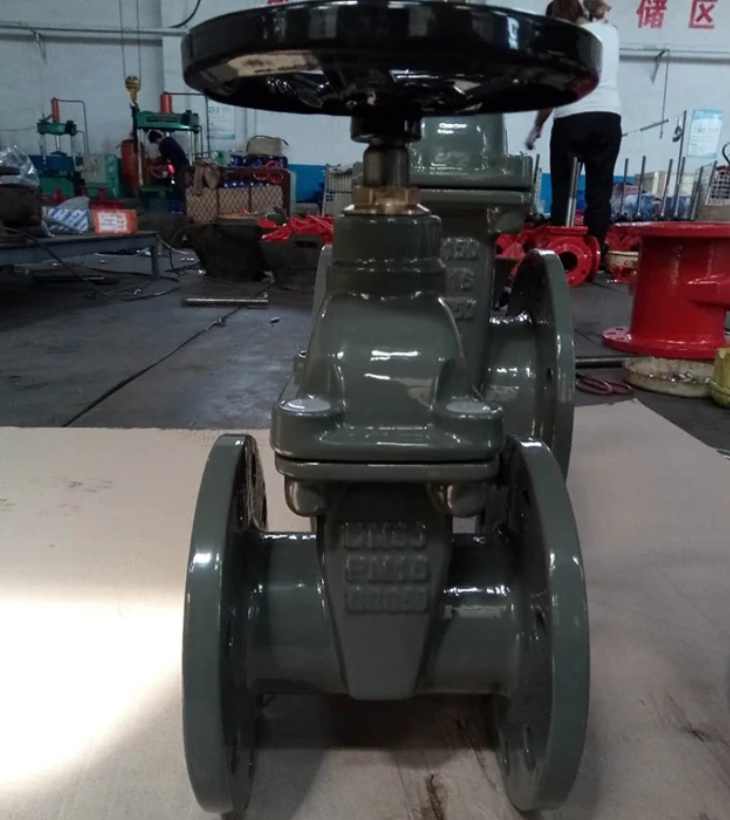

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
