body ASTM A216 WCB cast steel globe valve FROM HEBEI

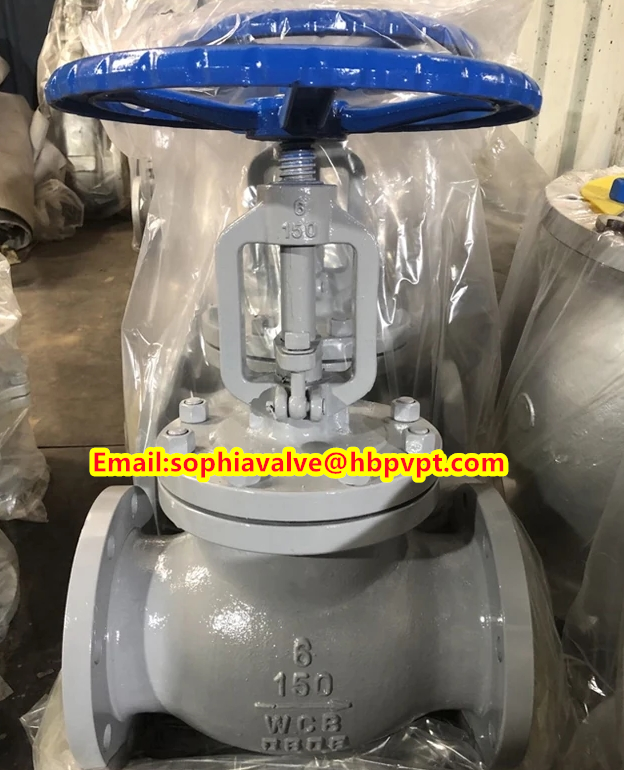

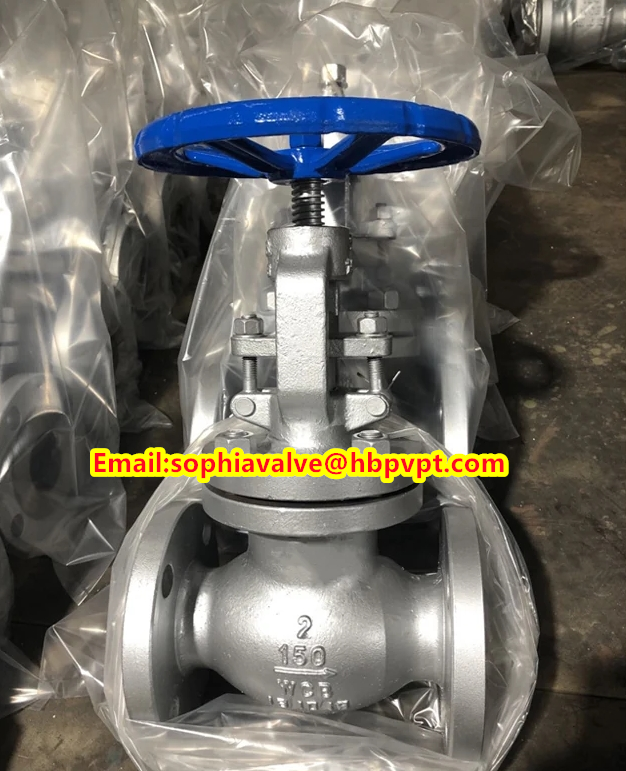

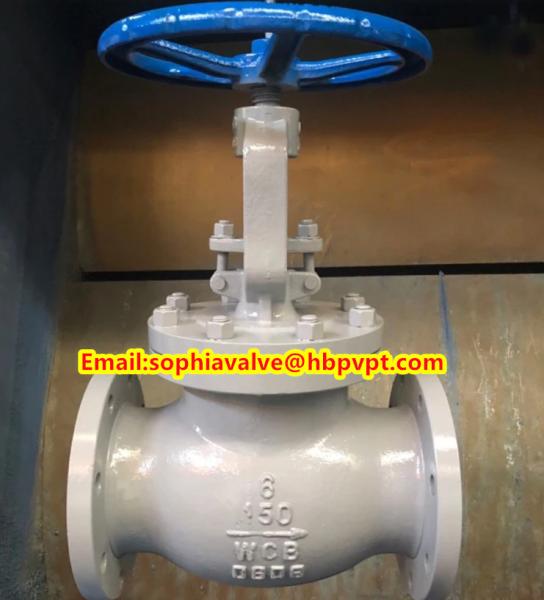

Product show
Materials
1.Body:ASTM A216 WCB
2.Bonnet:ASTM A216 WCB
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Hand wheel:ASTM A536 65-45-12
8.Bonnet bolt:ASTM A193 B7
9.Bonnet nut:ASTM A194 2H
10.Packing:Graphite
Specifications
1.Production Size:1/2"~12".DN15~DN300
2.Pressure:600LB
3.Design Standard:API600,API6D,BS1873
4.Face to Face:ASME B16.34
5.Flange Standard:ASME B16.5
6.Testing Standard:API 598
|
|
