A182 F304/304L stainless steel forged globe valve
Specifications
1.Production Size:1/4"~2"
2.Pressure:150LB/300LB/600LB/800LB/900LB/1500LB
Forged Globe Valve standard:
1.Design Standard:ASME/ANSI B16.34,API602
2.Face to Face:ANSI B16.10
3.Flange Standard:ANSI B16.5
4.Testing Standard:API 598
Forged Globe Valve Material of parts:
1.Body: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L
2.Bonnet: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Disc: A182 F6A,A182 F304/F304L,A182 F316/316L
5.Gasket:PTFE/Graphite
6.Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L
7.Packing:Graphite
8.Handle: Malleable Iron

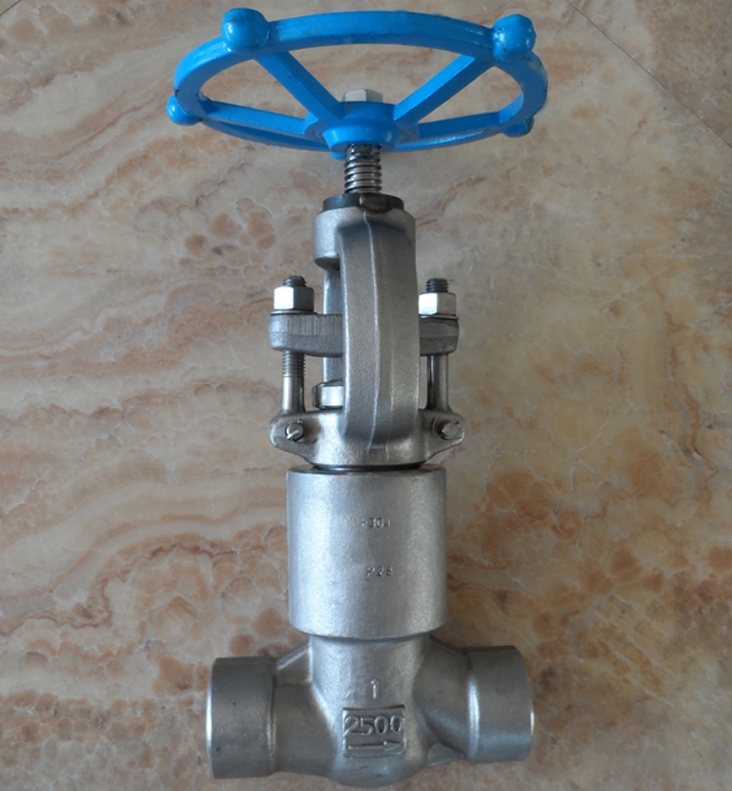

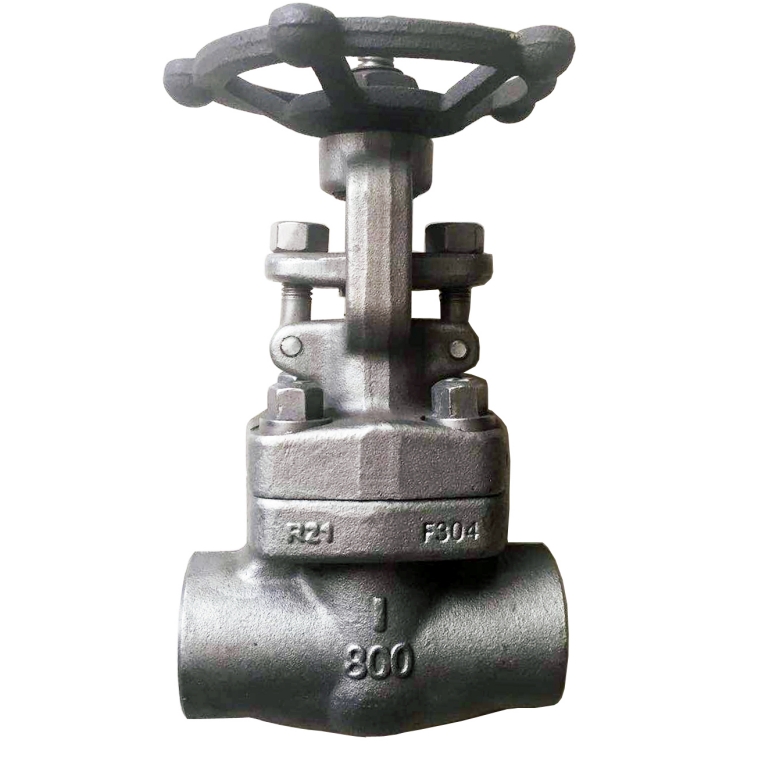

Product show
Pls note:
Our factory manufacture various types of valves, if any inquiry for valves, pls don’t hesitate to contact Sophia via Email:sophiavalve(at)hbpvpt.com
|
|
