JIS B2031 10K cast iron ball valve
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:10K
JIS Ball Valve standard
1.Design Standard:JIS B2031
2.Face to Face:JIS B2002 DN15-DN100(6) DN125-DN200(39)
3.Flange Standard:JIS B2212
4.Testing Standard:JIS B2003
JIS Ball Valve main material of parts:
1.Body:FC200/FCD-S
2.Bonnet:FC200/FCD-S
3.Stem:2Cr13/SUS304/SUS316/Carbon Steel
4.Ball:SUS304,SUS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:FCD450

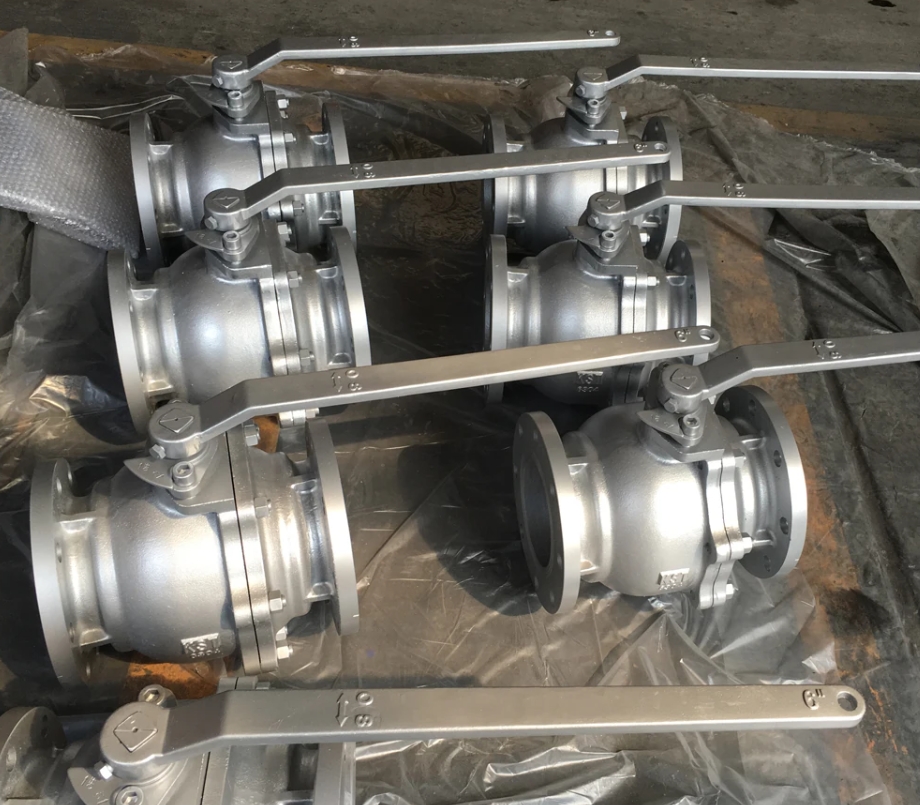

Product show
|
|
