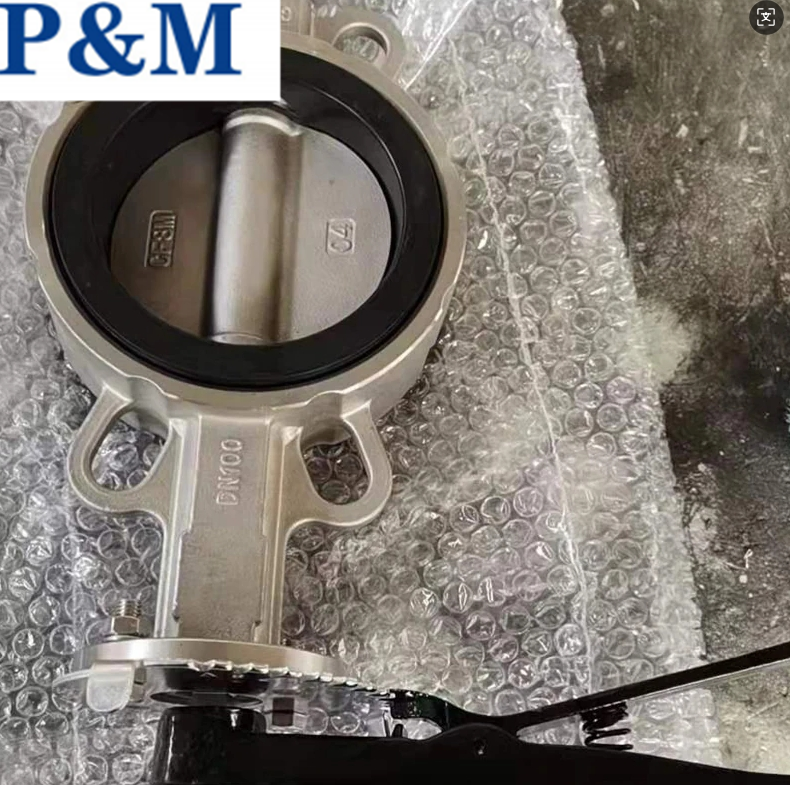

CF8/CF8M stainless steel wafer butterfly valve
Product show
Specifications
1.Production Size:1 1/2"~40".DN40~DN1000
2.Pressure:150LB,PN16,JIS 5K,10K
Standard:
1.Design Standard:ANSI,DIN,JIS,GOST
2.Face to Face:API 609,ISO5752
3.Flange Standard:ASME 16.42,DIN2501 PN16,BS4504 PN10/16,JIS B2220 10K
4.Testing Standard:API 598
Material of parts:
1.Body:ASTM A351 CF8,CF8M,ASTM A351 CF3M,1.4462
2.Stem:2Cr13/SS304/SS316/Carbon Steel
3.Disc:SS201,SS304,SS316
4.Gasket:Graphite,PTFE
5.Seat:NBR,EPDM,PTFE,RPTFE
|
|
