low pressure PN10 DIN resilient seal F5 gate valve

Product Categories

HEBEI PAWOFUOU VALVE AND PIPE FITTING TECHNOLOGY CO.,LTD.

Contact Now

Ask Lasest Price
Brand Name :	PVPT
Price :	EXW FOB CFR CIF
Payment Terms :	L/C, T/T
Delivery Time :	30 days after receiving the down payment

Add to Cart

low pressure PN10 DIN resilient seal F5 gate valve

Specifications

1.Production Size:DN50-DN600

2.Pressure range:PN10,PN16,PN25

Standard:

1.Design Standard:DIN3352

2.Face to Face:DIN3202 F5

3.Flange Standard:EN 1092

4.Testing Standard:EN12226

Main Material of parts:

1.Body:GGG45/GGG50

2.Bonnet:GGG45/GGG50

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass

5.Disc:GGG45/GGG50

6.Seat:EPDM/NBR/PTFE

7.Handwheel:GGG45/GGG50

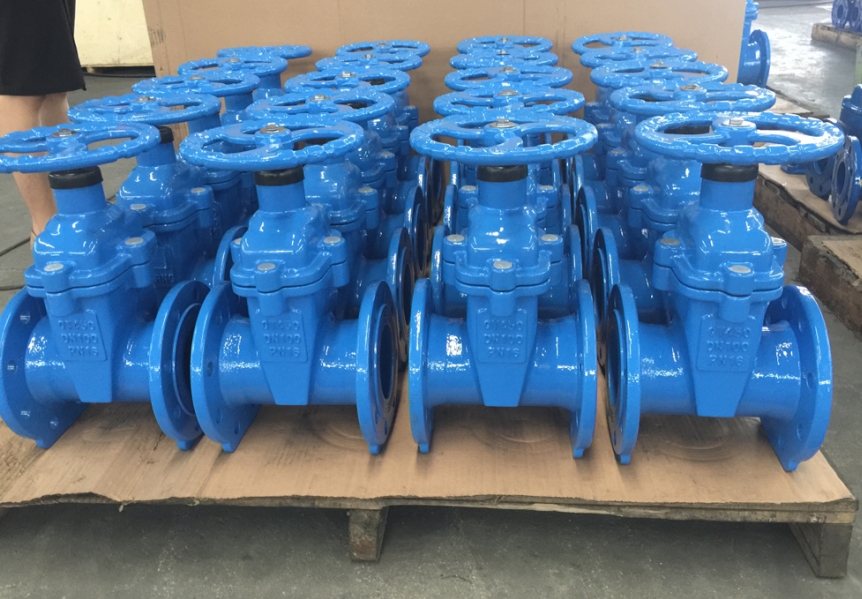

Product show
