DIN3352 resilient seal cast iron PN16 gate valve
Specifications
1.Size:DN50-DN1600mm
2.Pressure range:PN16
Cast iron PN16 gate valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F4
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
Cast iron PN16 gate valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Handwheel:GGG45/GGG50

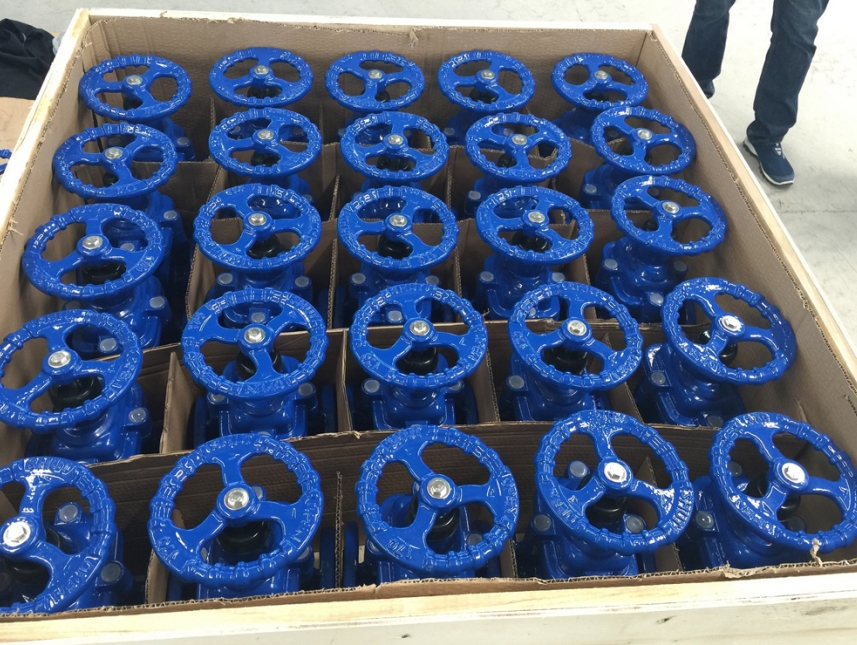

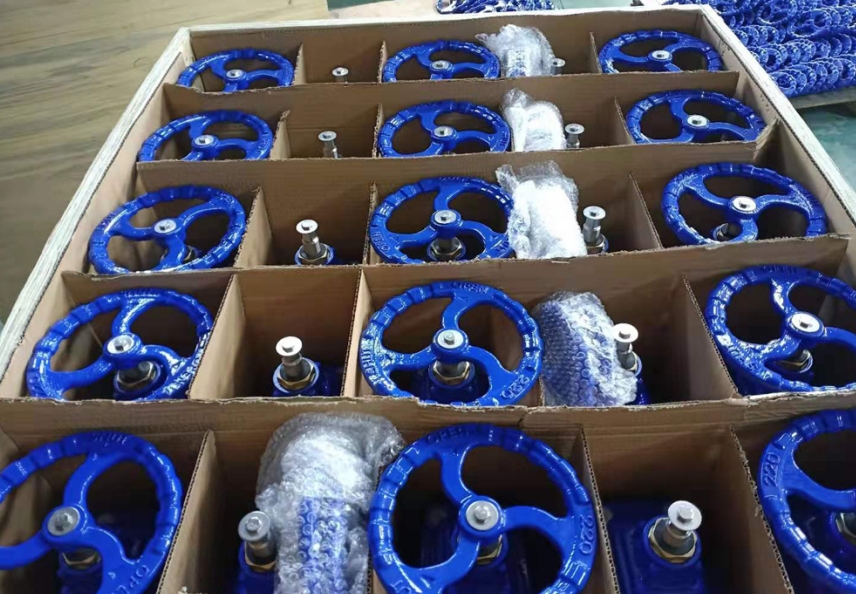

Product show
|
|
