JIS 20K cast steel rising gate valve
Specifications
1.Production Size:2”-12” DN50-DN300mm
2.Pressure range:20K
Standard:
1.Design Standard:KS B 2361/JIS B2031
2.Face to Face:KS B2306/JIS B2031
3.Flange Standard:KS B1511/JIS B2239
4.Testing Standard:KS B 2304
Main material of parts:
1.Body:SCPH2
2.Bonnet: SCPH2
3.Stem:2Cr13/SUS304/SUS316/Carbon Steel
4.Stem Nut:brass
5.Wedge Ring:Bronze B62/Brass
6.Disc: SCPH2
7.Bonnet Gasket:Graphite
8.Packing:Graphite
9.Handwheel:FCD450

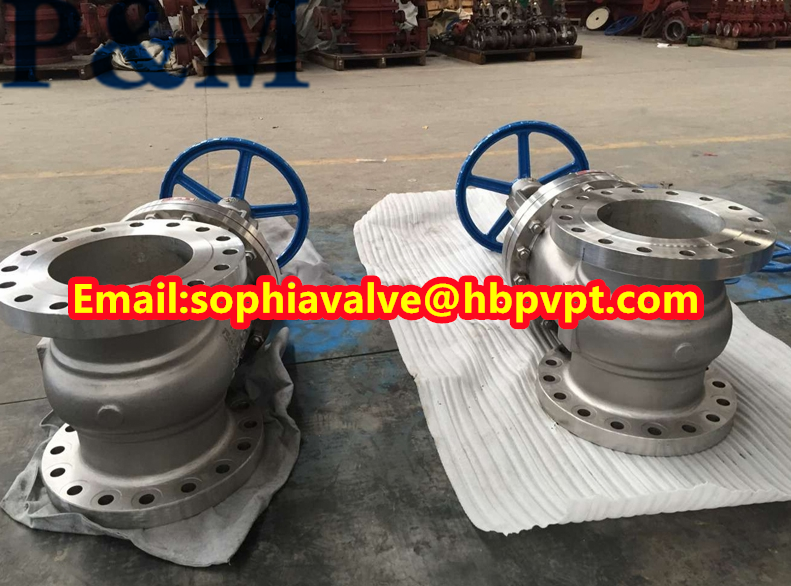

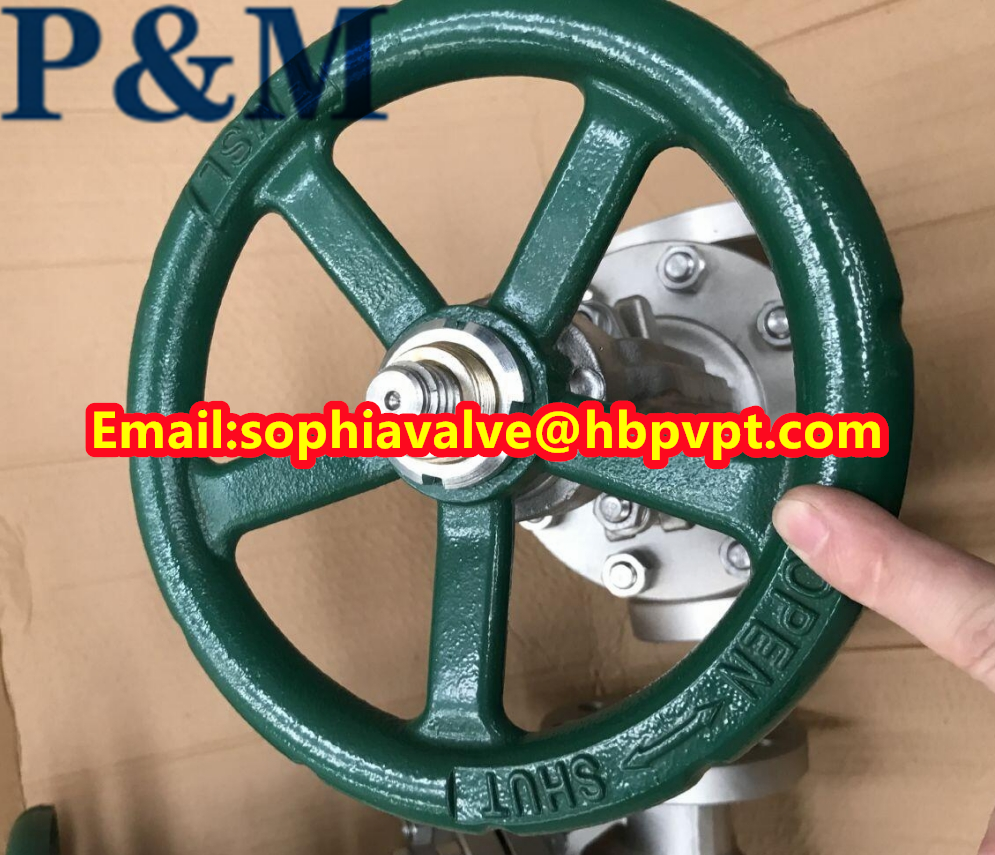

Product show
|
|
