    ASME B16.34 CF8M stainless steel gate valve

    Ask Lasest Price
    Brand Name : PVPT
    Price : EXW FOB CFR CIF
    Payment Terms : L/C, T/T
    Delivery Time : 30 days after receiving the down payment
    • Product Details
    • Company Profile

    ASME B16.34 CF8M stainless steel gate valve

    ASME B16.34 CF8M stainless steel gate valve


    Specifications

    1.Production Size:1 1/2"~20".DN40~DN500

    2.Pressure:150LB,300LB,600LB,900LB

    3.Design Standard:ASME B16.34,API600,API6D

    4.Face to Face:ASME B16.10

    5.Flange Standard:ASME B16.5,ASME B16.47

    6.Testing Standard:API 598


    Main material of parts:

    1.Body:CF3,CF3M,CF8,CF8M

    2.Bonnet:CF3,CF3M,CF8,CF8M

    3.Stem:2Cr13/SS304/SS316/Carbon Steel

    4.Stem Nut:brass,bronze

    5.Disc:CF3,CF3M,CF8,CF8M

    6.Packing:Graphite,PTFE

    7.Seat:CF3,CF3M,CF8,CF8M

    8.Handwheel:ASTM A536 65-45-12

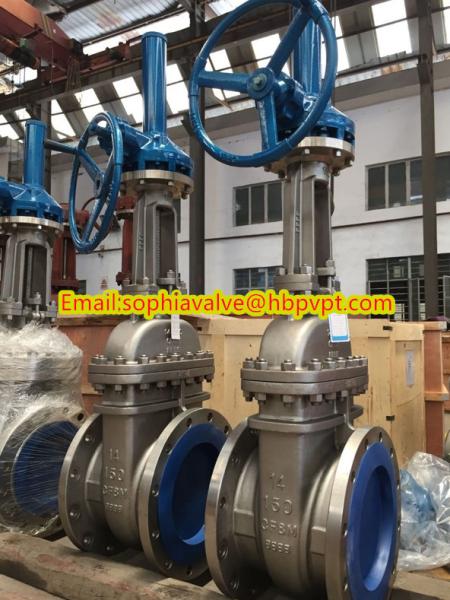

    Product show

    Quality ASME B16.34 CF8M stainless steel gate valve for sale
