DIN PN10 PN16 Swing check valve
Specification
1.Production :2”-24” DN50-DN600
2.Pressure :PN10,PN16
Standard
1.Design Standard:DIN
2.Face to Face:DIN3202 F6
3.Flange Standard:EN 1092-2
4.Testing Standard:ISO 5208
Materials of main construction
1.Body:EN-GJL-250
2.Bonnet:EN-GJL-250
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJL-250
6.Seat:Bronze,Brass
7.Hanger:EN-GJS-5007
8.Hanger pin:Stainless Steel
9.Cover Gasket:Graphite

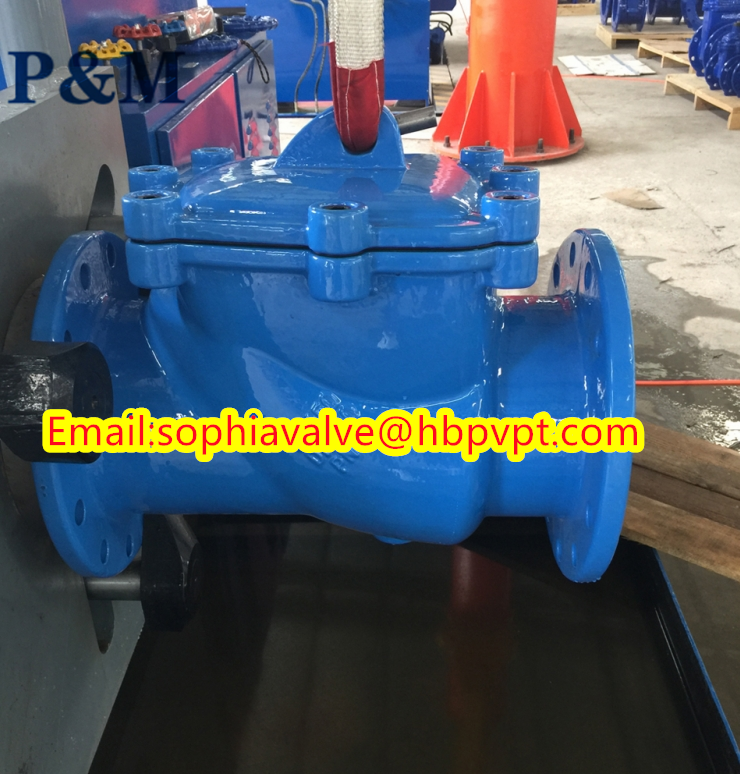

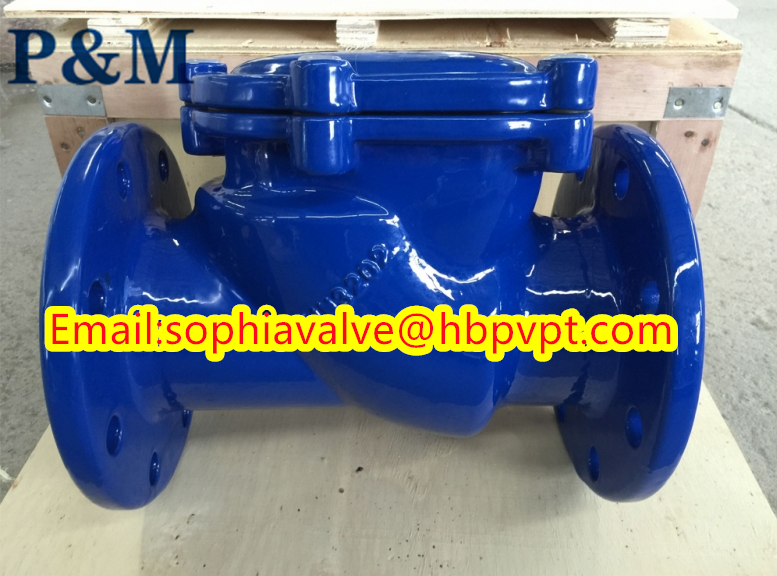

Product show
|
|
