DIN3352 resilient seal F4 cast iron gate valve body material GGG50

The gate valves are manufactured according to DIN3352. F4 is the length of face to face.

If you need price for F5 gate valve, pls contact Sophia.

Specifications

1.Size:DN50-DN1600mm

2.Pressure range:PN10,PN16,PN25

Standard:

1.Design Standard:DIN3352

2.Face to Face:DIN3202 F4

3.Flange Standard:EN 1092

4.Testing Standard:EN12226

Main Material of parts:

1.Body:GGG50

2.Bonnet:GGG50

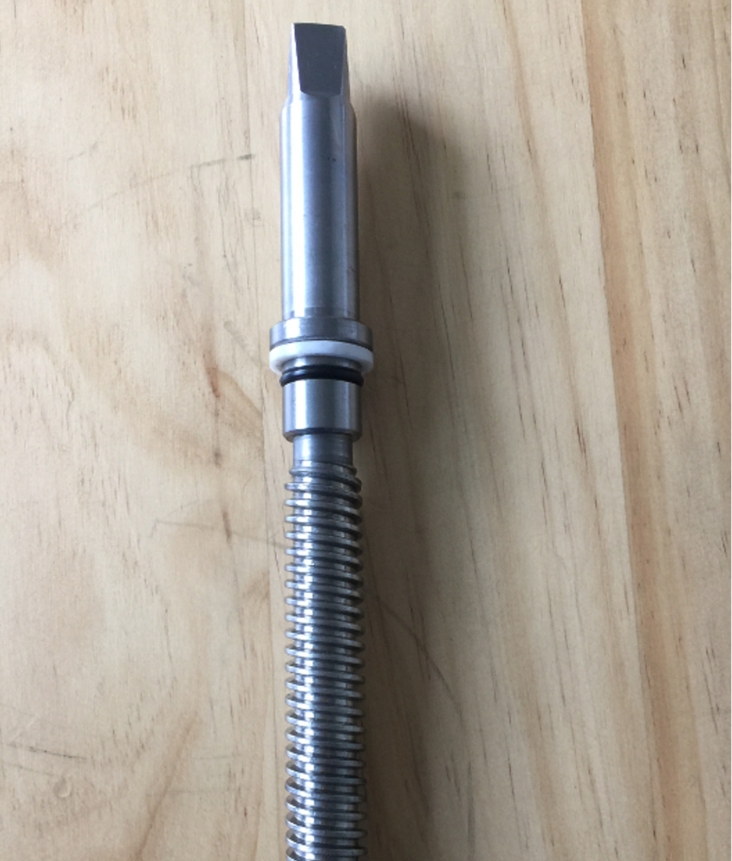

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass

5.Disc:GGG45/GGG50

6.Seat:EPDM/NBR/PTFE

7.Handwheel:GGG45/GGG50

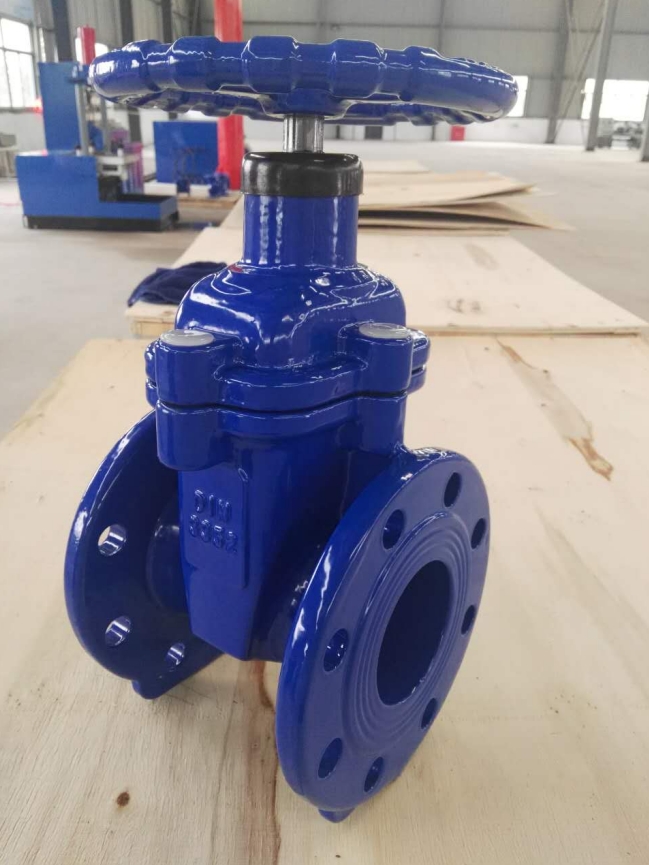

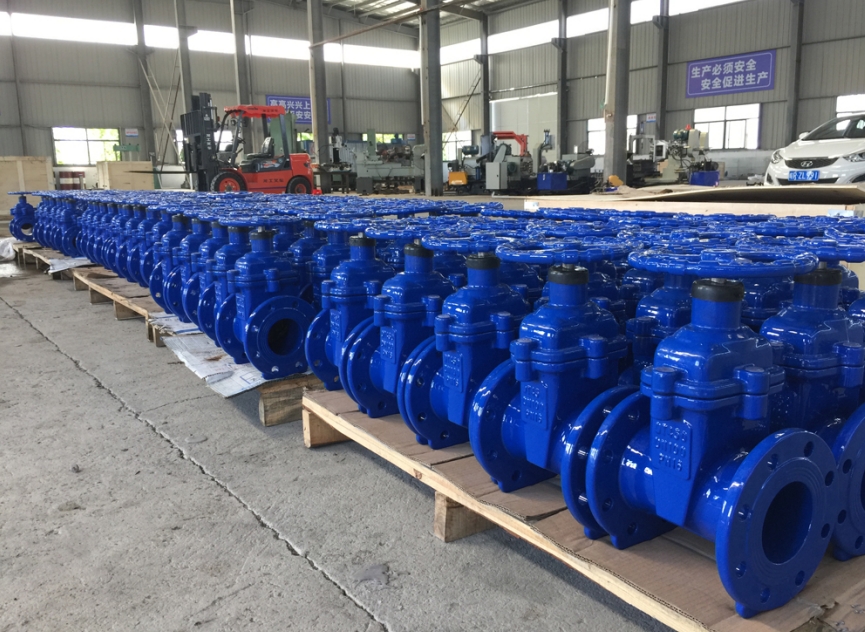

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
