DN50 DN100 DN200 GS-C25 PN16 PN40 bellows globe valve with blue color

The application medium of bellows globe valve is water, oil, gas etc.

Specifications for bellows globe valve

1.Production Size: DN50 DN100 DN200

2.Pressure: PN16/40

globe valve Standard:

1.Design Standard: DIN 3356.

2.Face to Face: DIN 3202 F1.

3.Flange Standard: DIN 2533 PN16.

4.Testing Standard: ISO 5208.

globe valve Material of Parts:

1.Body: GS-CS25.

2.Bonnet: GS-CS25.

3.Stem: 2Cr13, SS304, SS316, carbon steel.

4.Stem Nut: brass, ductile iron.

5.Bellows: SS304.

6.Disc: GS-CS25.

7.Seat: ASTM B62 C83600, 2Cr13, Brass.

8.Hand wheel: ASTM A536 65-45-12.

9.Packing: Graphite.

Product show

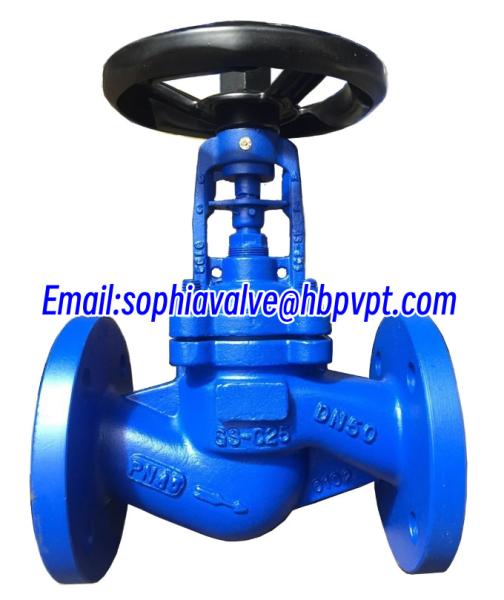

Size:DN50, Body material:GS-C25, Pressure:PN40

Size:DN50, Body material:GS-C25, Pressure:PN16

Size:DN50, Body material:GS-C25, Pressure:PN40

Size:DN200, Body material:GS-C25, Pressure:PN40

​Size:DN100, Body material:GS-C25, Pressure:PN16

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
