JIS B2031 FC200 cast iron PTFE seal ball valve exporter from China

Ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.

The opening and closing (ball) is driven by the stem and revolves around the axis .

Specifications

JIS B2031 Cast Iron Ball Valve range:

1.Production Size:1/2"~10".DN15~DN250

2.Pressure:10K

JIS B2031 Cast Iron Ball Valve standard

1.Design Standard:JIS B2031

2.Face to Face:JIS B2002 DN15-DN100(6) DN125-DN200(39)

3.Flange Standard:JIS B2212

4.Testing Standard:JIS B2003

JIS B2031 Cast Iron Ball Valve main material of parts:

1.Body:FC200/FCD-S

2.Bonnet:FC200/FCD-S

3.Stem:2Cr13/SUS304/SUS316/Carbon Steel

4.Ball:SUS304,SUS316

5.Gasket:PTFE

6.Seat:PTFE,RPTFE

7.Stem Packing:PTFE

8.Handle:FCD450

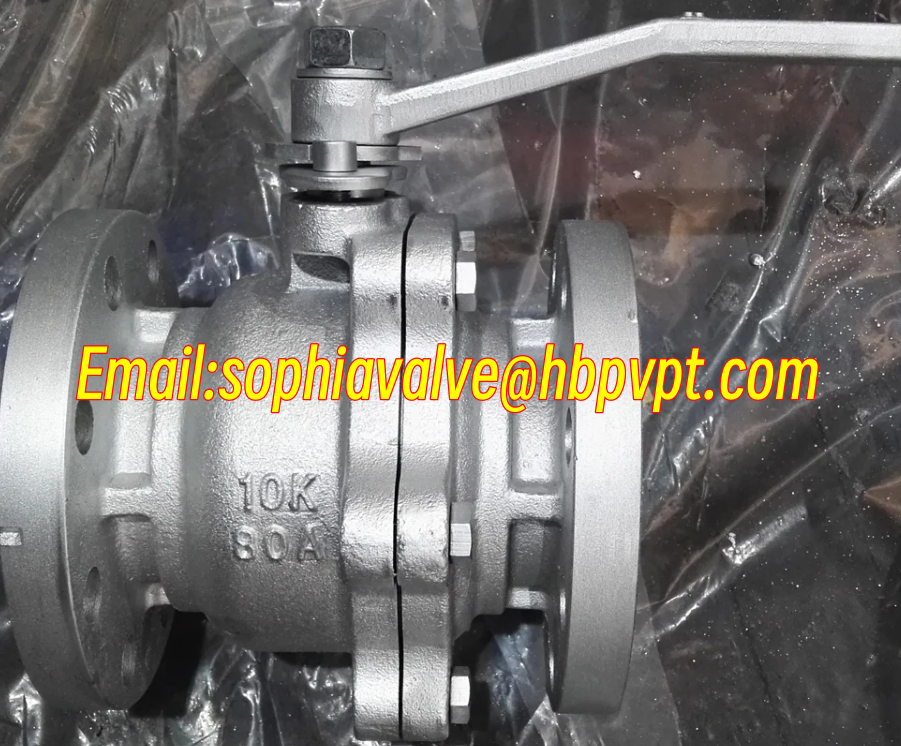

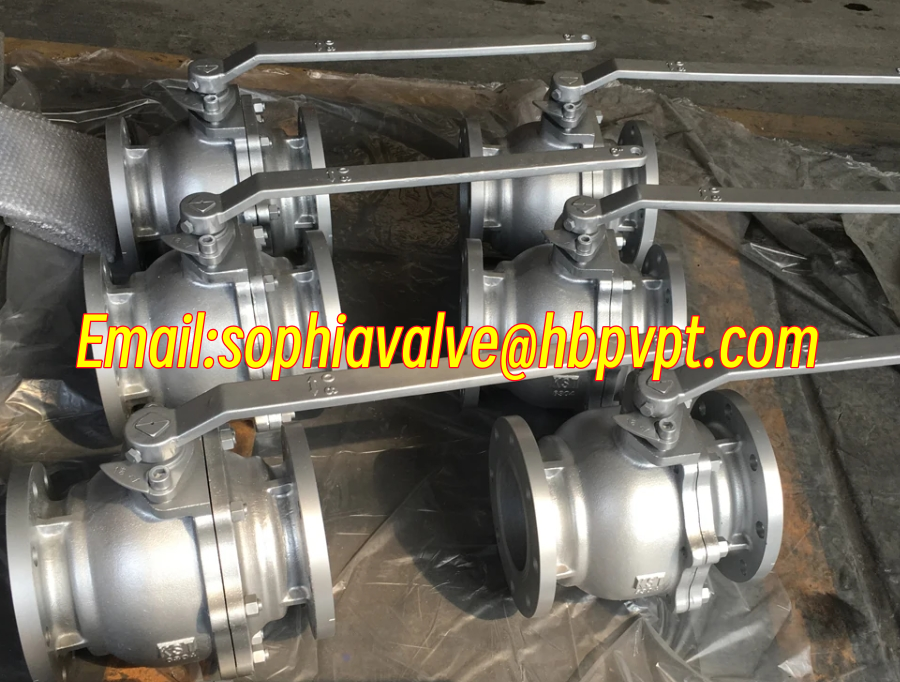

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
