resilient seal Q41F ANSI stainless steel ball valve

Specifications

The sealing performance of ball valve is good,the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring.

ANSI Stainless Steel Ball Valve range:

1.Production Size:1/2"~10".DN15~DN250

2.Pressure:150LB,300LB,600LB,900LB

ANSI Stainless Steel Ball Valve standard

1.Design Standard:ANSI 608

2.Face to Face:ASME B16.10

3.Flange Standard:ASME B16.10

4.Testing Standard:API 598

ANSI Stainless Steel Ball Valve main material of parts:

1.Body:CF3,CF3M,CF8,CF8M

2.Bonnet:CF3,CF3M,CF8,CF8M

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Ball:CF3,CF3M,CF8,CF8M

5.Packing:PTFE

6.Seat:PTFE,RPTFE

7.Washer:PTFE

8.Handle:ASTM A536 65-45-12,A351 CF8,A351 CF8M

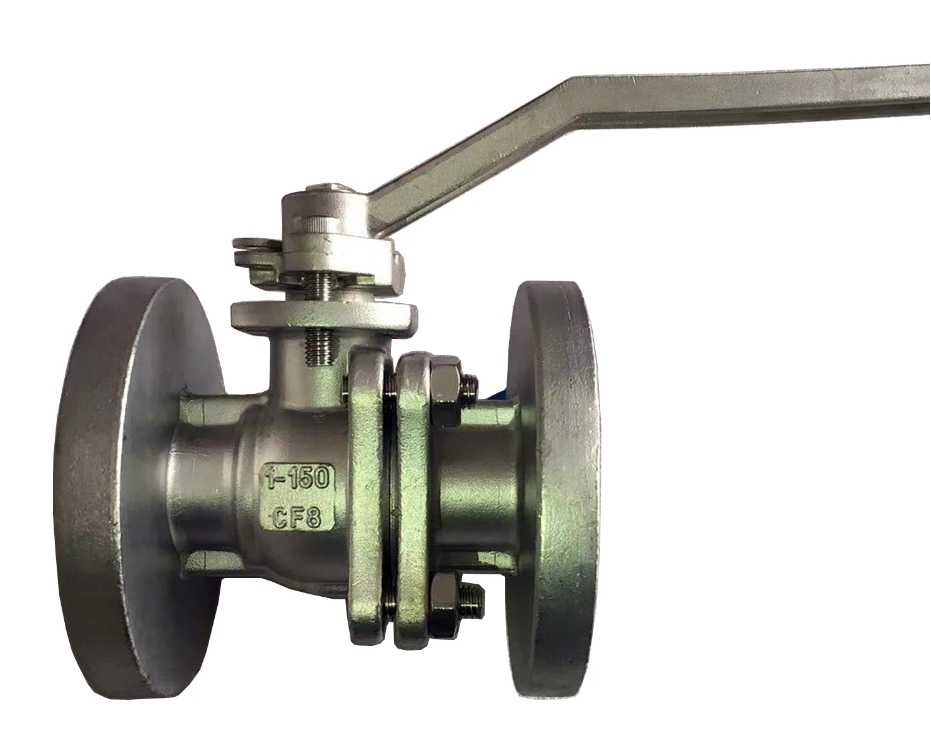

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
