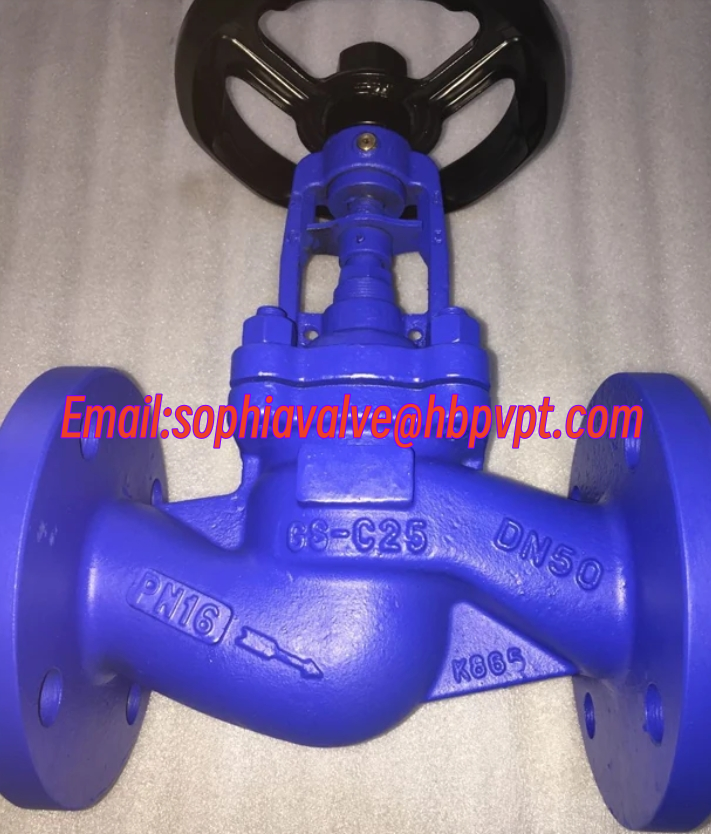

carbon steel GS-C25 DIN globe valve manufacturer

DIN globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.

The opening and closing part is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.

DIN globe valve Specifications

1.Production Size: 1/2"~10".DN15~DN250.

2.Pressure: PN16.

DIN Bellows Globe Valve Standard:

1.Design Standard: DIN 3356.

2.Face to Face: DIN 3202 F1.

3.Flange Standard: DIN 2533 PN16.

4.Testing Standard: ISO 5208.

DIN Bellows Globe Valve Material of Parts:

1.Body: GS-CS25.

2.Bonnet: GS-CS25.

3.Stem: 2Cr13, SS304, SS316, carbon steel.

4.Stem Nut: brass, ductile iron.

5.Bellows: SS304.

6.Disc: GS-CS25.

7.Seat: ASTM B62 C83600, 2Cr13, Brass.

8.Hand wheel: ASTM A536 65-45-12.

9.Packing: Graphite.

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
