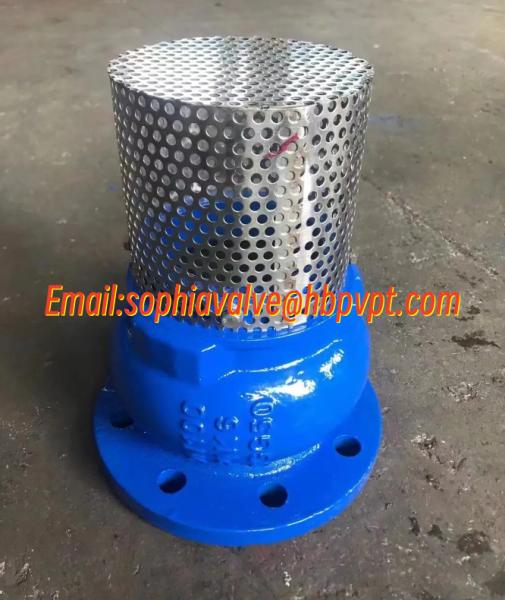

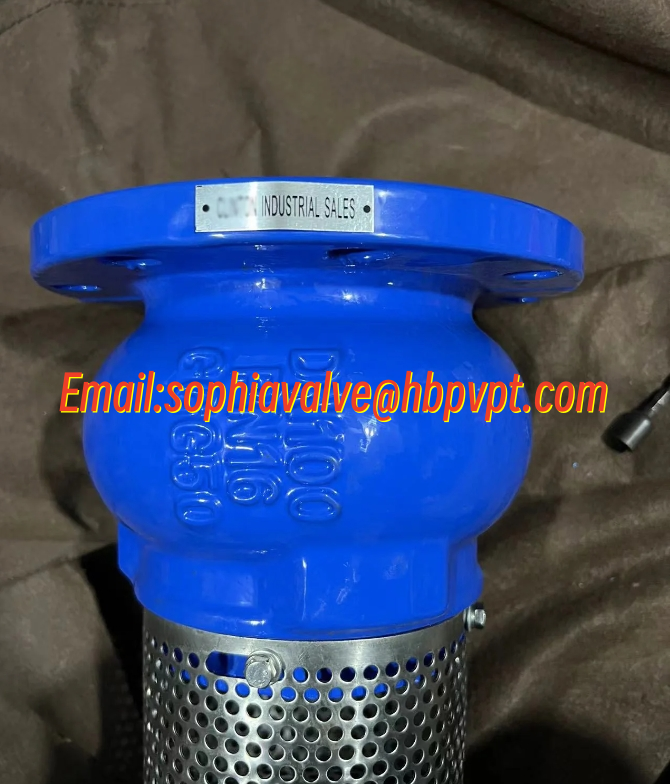

PN16 ductile iron GGG50 foot valve

It is also called single direction valve, no-return valve and back pressure valve. It is a kind of automatic valve.

Ductile Iron Foot Valve Standard:

1.Production Size:2”-16” DN50-DN400mm

2.Pressure range:PN0.25,PN6,PN10,PN16,150LB

3.Design Standard:ANSI

4.Flange Standard: ANSI 16.1,EN1092

5.Testing Standard:ISO 5208

Ductile Iron Foot Valve main material of parts:

1.Body:Ductile Iron

2.Base: Ductile Iron

3.Stem:2Cr13

4.Spring:SS304

5.Disc:Ductile Iron+EPDM

6.Screen:SS304

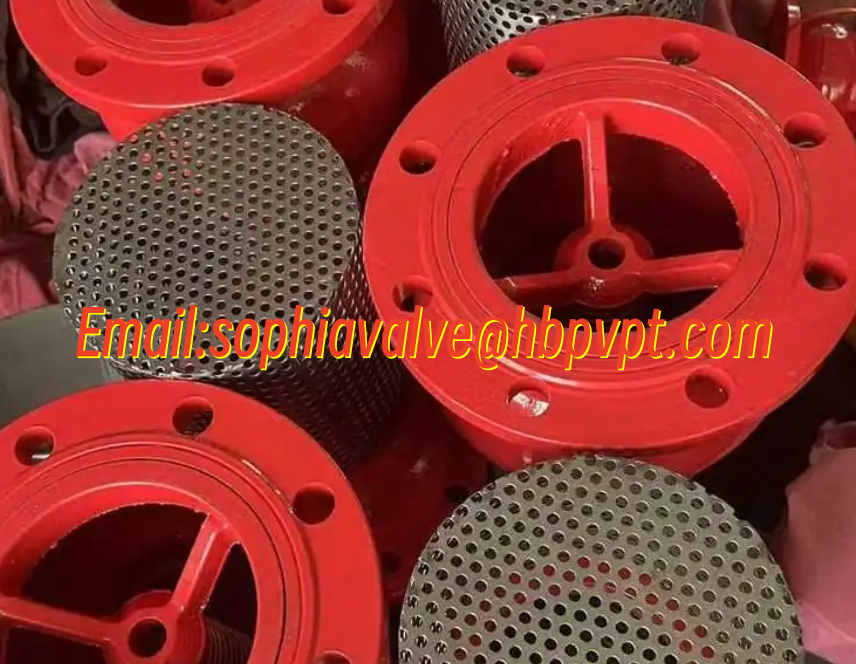

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
