stainless steel CF8M full port ball valve

Stainless steel ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.

full port ball valve Ball Valve range:

1.Production Size:1/2"~10".DN15~DN250

2.Pressure:150LB,300LB,600LB,900LB

full port ball valve Ball Valve standard

1.Design Standard:ANSI 608

2.Face to Face:ASME B16.10

3.Flange Standard:ASME B16.10

4.Testing Standard:API 598

full port ball valve main material of parts:

1.Body:CF3,CF3M,CF8,CF8M

2.Bonnet:CF3,CF3M,CF8,CF8M

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Ball:CF3,CF3M,CF8,CF8M

5.Packing:PTFE

6.Seat:PTFE,RPTFE

7.Washer:PTFE

8.Handle:ASTM A536 65-45-12,A351 CF8,A351 CF8M

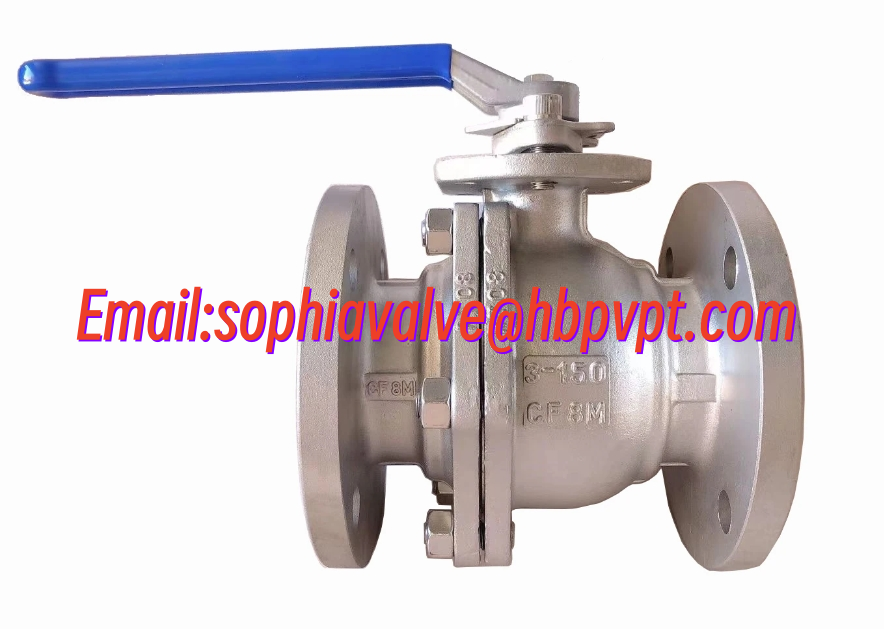

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
