ANSI 125LB A126B cast iron gate valve
Specifications
1.Size :2”-40” DN50-DN1000mm
2.Pressure :125LB,150LB
3.Design standard:MSS SP-70
4.Face to face:ANSI B16.10
5.Flange standard:ANSI B16.5
6.Test standard:MSS SP-70,API 598
7.Body:ASTM A126B
8.Bonnet:ASTM A126B
9.Stem:2Cr13/SS304/SS316/Carbon Steel
10.Stem nut:brass
11.Seat:Bronze B62/Brass
12.Disc:ASTM A126B
13.Handwheel:ASTM A536 65-45-12

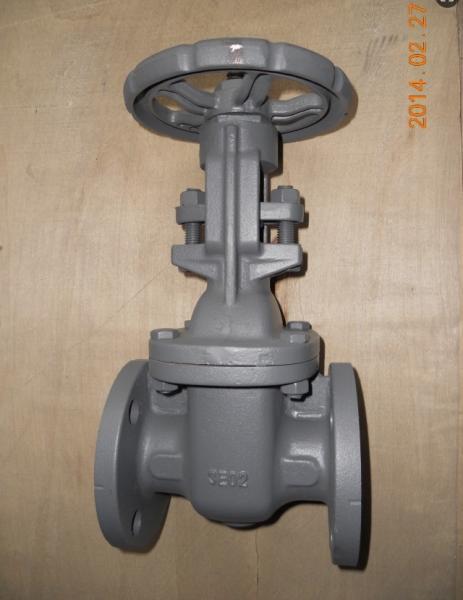

Product show
![]() |
